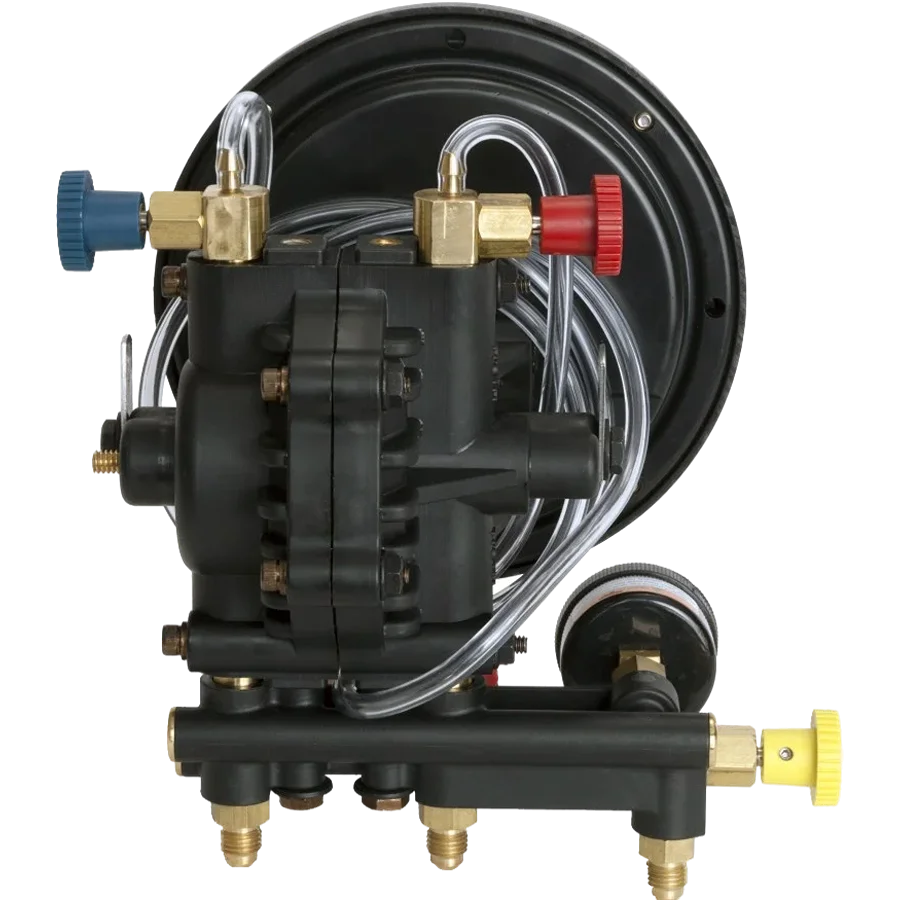

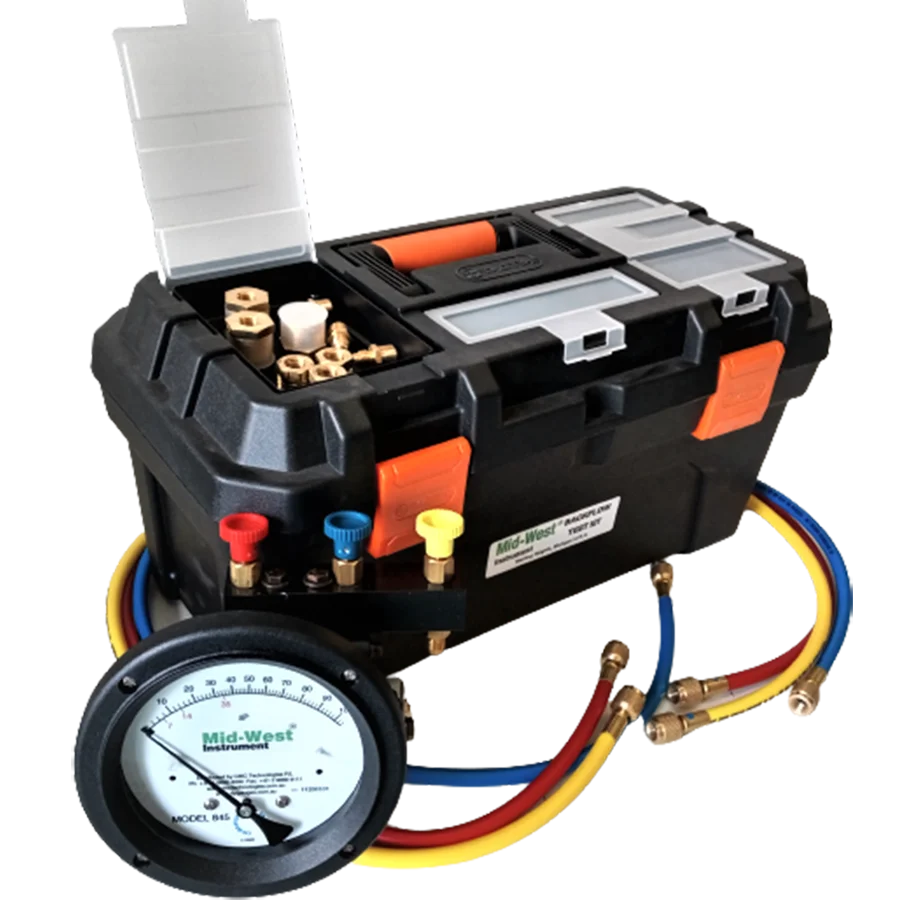

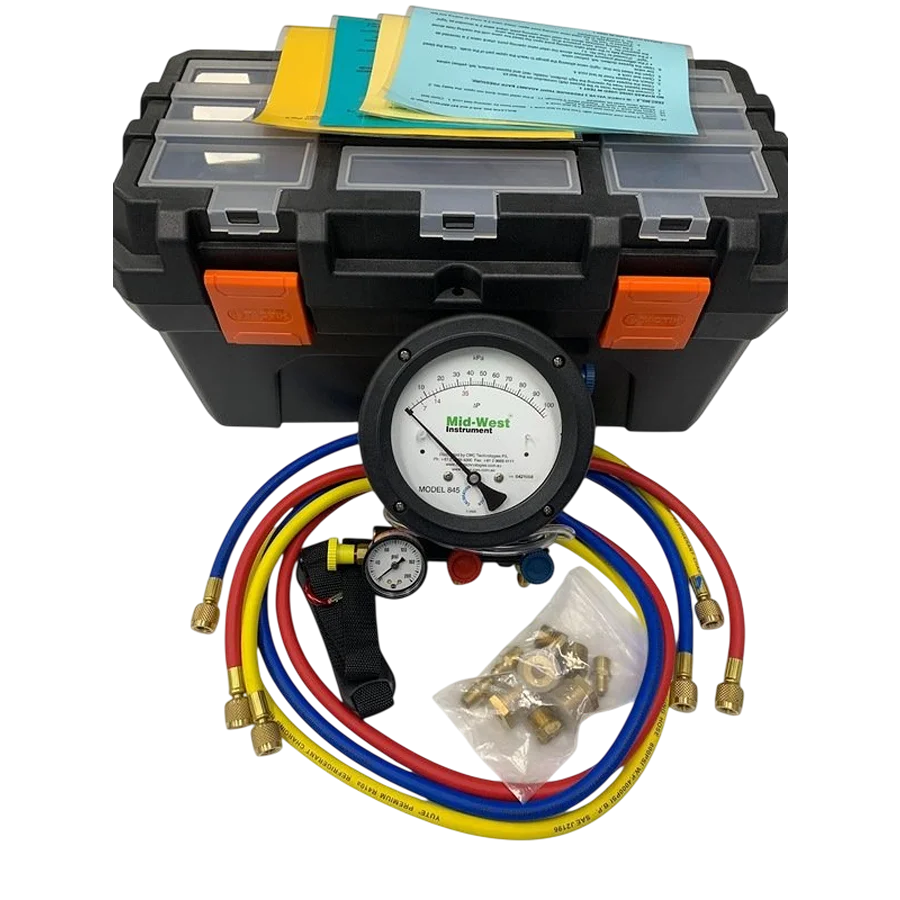

Model 845-5®
5-Valve Backflow Test Kit

Gauge Type: Diaphragm Differential Pressure 5-Valve Test Kit
Dial Size & Range: 4-1/2″, 0-100 KPA
Accuracy for Pressure Changes: ± 2% full scale / ± 2.0 kPa, compliant with Australian Standard AS2845.3
Working Pressure: 200 PSIG
Body Material: Glass Reinforced Engineering Thermoplastic
Wetted Internals: EP Elastomers, Brass, and 316 Stainless Steel Parts
Line Pressure Gauge: 1-1/2″, 0-200 PSIG
Hoses: Equipped with Inline Filters and Schrader ¼” brass coupler end fittings
Hose Length: Three hoses, each 5′ long (color-coded)
Adaptor Fittings: Three sets of brass fittings included for connection to standard test cocks
Temperature Limitations: Maximum temperature of 65°C
Red Indicators: Marked at 7kPa, 14kPa, and 35kPa for better visibility during testing
Included paperwork: Calibration certificate and laminated instructions
Inquire
