As a leading DP gauges supplier in Australia, CMC Technologies proudly represents Mid-West Instrument USA, offering a comprehensive range of high-quality differential pressure gauges designed for diverse industrial needs. Choosing the right differential pressure gauge is critical for accurate measurement, system efficiency, and safety.
In this guide, we compare the main types of differential pressure gauges available, their features, and ideal applications, helping Australian industries select the best solution for their specific requirements.
What Are Differential Pressure Gauges?
Differential pressure (DP) gauges measure the difference in pressure between two points in a system. They play a vital role in monitoring flow rates, filter conditions, liquid levels, and more across industries such as water treatment, oil & gas, HVAC, chemical processing, and natural gas filtration.
Types of Differential Pressure Gauges and Their Applications
1. Piston Type Differential Pressure Gauges
- Accuracy: ±2% to ±5% Full Scale
- How They Work: Use a precisely ground floating piston coupled with a magnet to sense pressure changes in liquids. The external dial reads pressure via magnetic coupling without fluid leakage.
- Best For: Liquid applications requiring precision measurement where slight fluid bypass is acceptable.
- Limitations: Not ideal for gas applications due to fluid bypass.
- Common Uses: Hydraulic systems, liquid filtration monitoring.

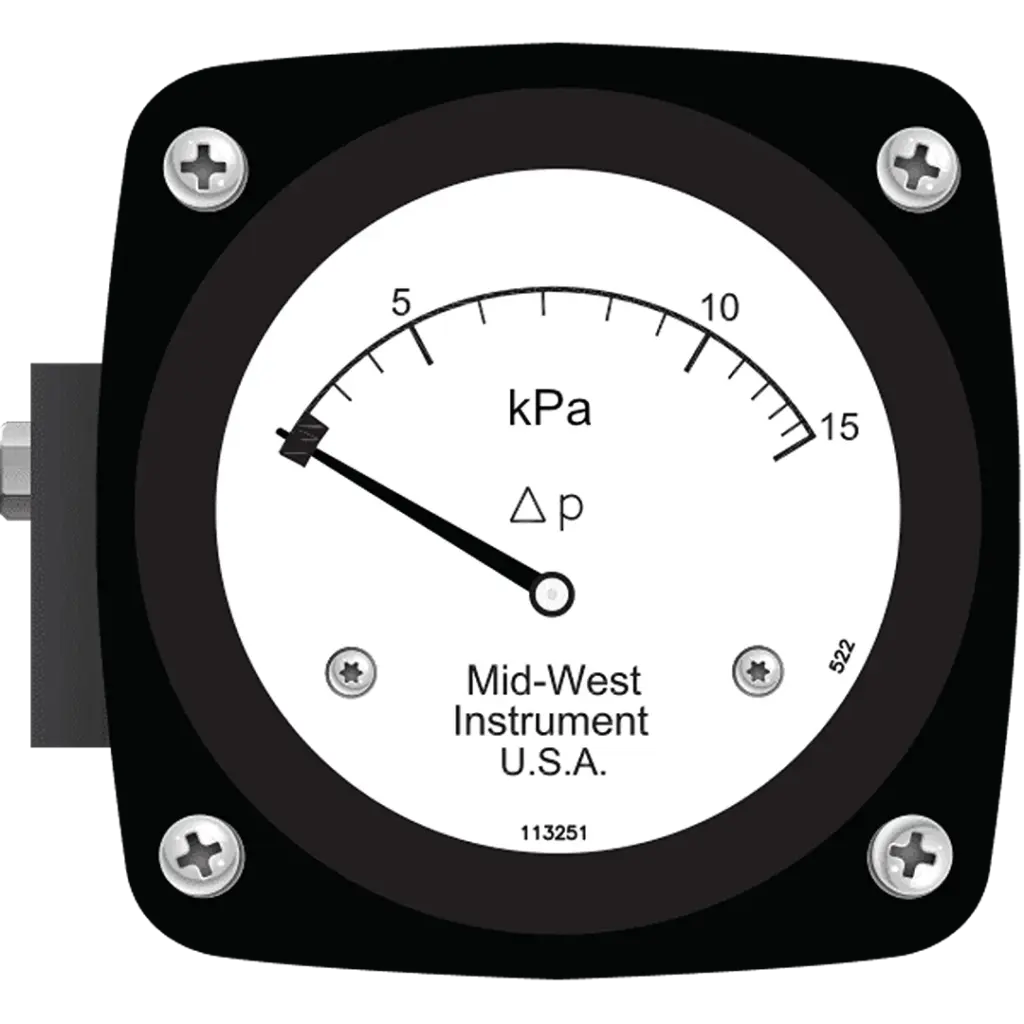

2. Diaphragm Type Differential Pressure Gauges
- Accuracy: ±2% to ±5% Full Scale
- How They Work: Feature isolated high and low-pressure ports separated by a flexible diaphragm, making them suitable for air, gases, liquids, and solids-laden fluids.
- Best For: Applications with dissimilar fluids or those handling solids in liquids or gases.
- Advantages: Versatile with various sizes and good chemical compatibility.
- Common Uses: HVAC systems, chemical processing, filter monitoring.
3. Bellows Type Differential Pressure Gauges
- Accuracy: ±0.5% to ±1% Full Scale
- How They Work: Use bellows linked to a mechanical assembly to measure pressure changes precisely. Equipped with overpressure protection and optional cam-triggered micro-switches.
- Best For: Applications requiring high accuracy and overpressure protection.
- Common Uses: Critical process control environments.
4. Bourdon Tube Type Differential Pressure Gauges
- Accuracy: ±0.5% to ±1% Full Scale
- How They Work: Utilise the deformation of a flattened tube under pressure to provide quick response readings. Ideal when rapid response and low volume displacement are needed.
- Best For: Leak detection and applications where diaphragm isolation is necessary.
- Common Uses: Gas filtration, leak detection systems.
Why Choose Mid-West Instrument Differential Pressure Gauges Through CMC Technologies?
CMC Technologies brings Mid-West Instrument’s trusted DP gauge solutions to Australian industries with benefits including:
- Wide Product Range: Covering piston, diaphragm, bellows, and Bourdon tube types to suit every industrial need.
- High Accuracy & Reliability: Ensuring precise readings critical for process safety and efficiency.
- Application Expertise: Our team helps select the right gauge based on your unique operating conditions.
- Local Support & Service: Prompt assistance and maintenance support throughout Australia.
Industries Benefiting from Differential Pressure Gauges in Australia
- Water Treatment & Irrigation
- Oil & Gas Processing
- HVAC & Filtration Systems
- Chemical & Petrochemical Plants
- Natural Gas Filtration & Monitoring
How to Select the Right Differential Pressure Gauge
When choosing a DP gauge, consider:
- Fluid Type: Liquid vs gas or gas-liquid mixtures.
- Required Accuracy: Depending on process criticality.
- Operating Environment: Temperature, pressure ranges, and presence of solids or corrosive fluids.
- Response Time Needs: Faster readings may require Bourdon tube types.
- Overpressure Protection Requirements
Our experts at CMC Technologies can guide you through these factors to ensure you get the optimal gauge for your application.
