Suitable for air, gas, and liquid applications. Ideal for pressurised tank level monitoring in stationary tanks (horizontal or vertical) and tanker transport systems
±2% Full Scale Descending Accuracy (ASME B40.100)

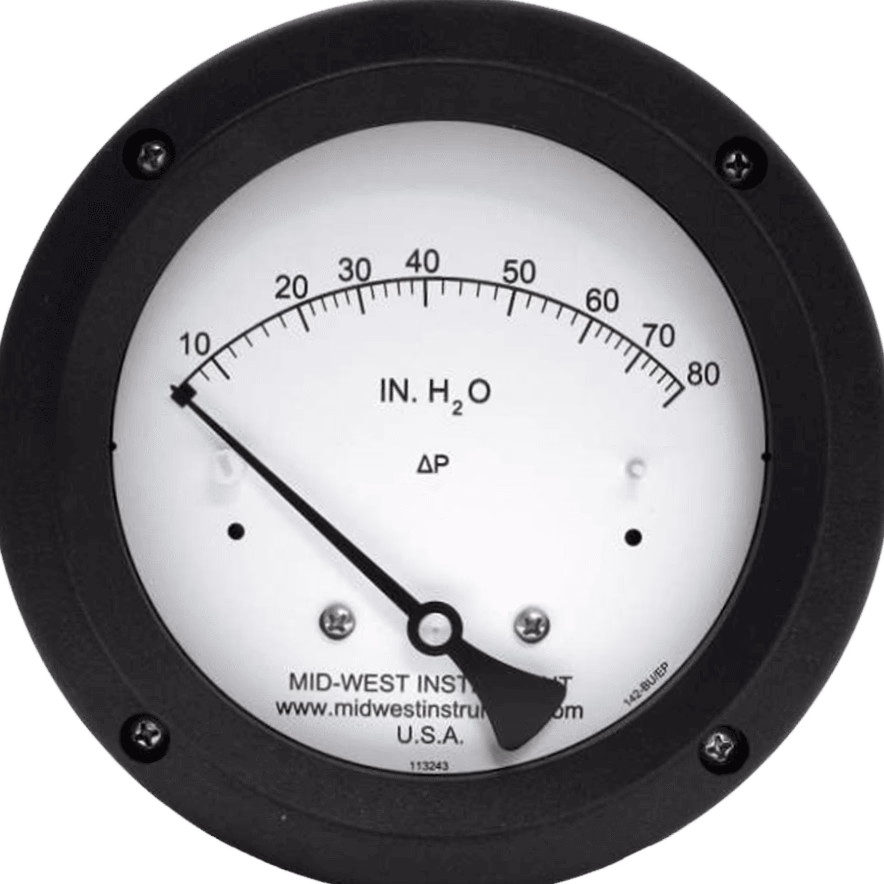

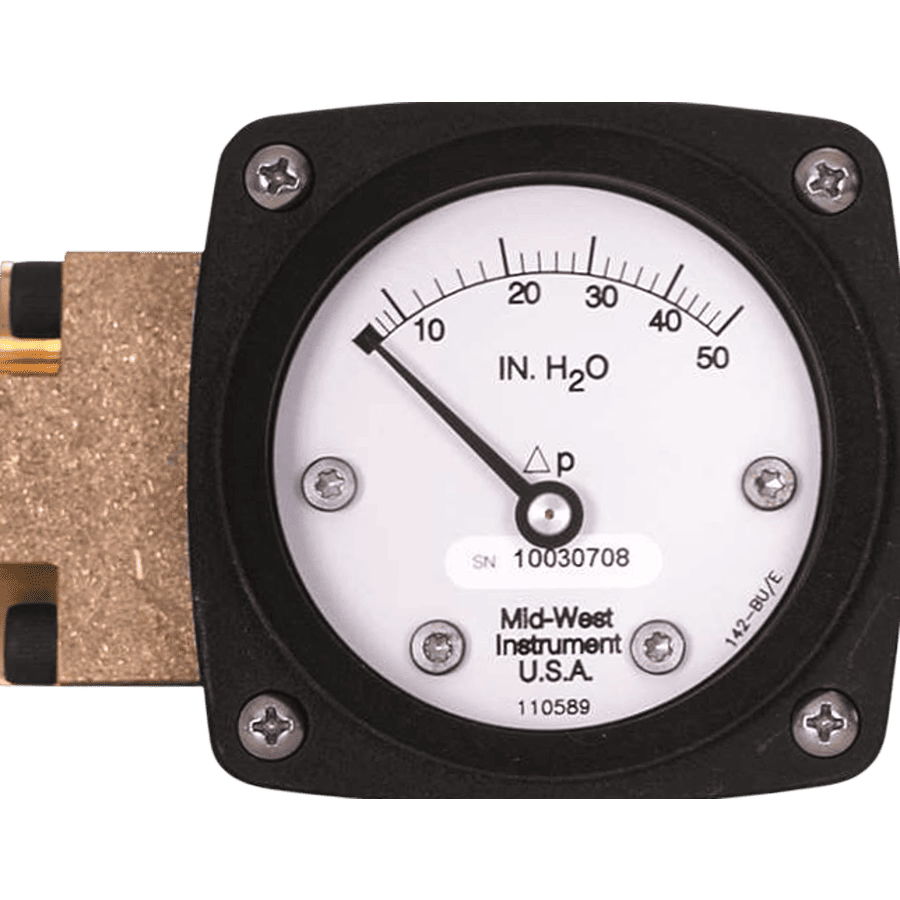

Available in 2-1/2”, 4-1/2”, and 6” diameters
0-20” H₂O to 0-600” H₂O; scales available for LOX, Ar, O₂, N₂, CO₂, CM H₂O, MM H₂O, etc.
-40°F to +200°F (-40°C to +93°C)
Rated up to 1000 PSIG (69 Bar)
Aluminium, Brass, or 316/316L Stainless Steel body; internal wetted parts made from 316 Stainless Steel, Ceramic Magnet, and Teflon bushings
Built for harsh environments with NEMA 4X/IP66 protection
Shatter-resistant lens
High over Low and Low over High-pressure safeguards
Buna-N, Viton, or Ethylene Propylene for O-rings and diaphragms
Switch options available as hermetically sealed reed switches
